Rapid Distribution Of Adhesive Anchorage System, Tensile Non Expansive Stress
From rebar dwelling on a high-traffic infrastructure retrofit project to DIY projects, Xinchor offers a wide variety of adhesive anchoring products to meet your need.
Our strong, versatile epoxy-based adhesives are ideal for anchoring threaded rod, rebar and smooth dowels in an assortment of base materials. And our acrylic formulations deliver consistent performance for high-strength anchor grouting in a wide range of weather conditions, curing fast even in water-saturated concrete.
Ideal for anchoring threaded rod, rebar and smooth in a variety of base materials, epoxy-based anchoring adhesives offer strength and versatility across a wide variety of applications. Xinchor Fixingchor series epoxy adhesives meet or are rigorously tested to meet 2009 IBC requirements for both cracked and uncracked concrete applications. As you would expect, we offers all the high-strength dispensing tools and other important accessories to increase productivity on any project.
A two-component, high strength adhesive anchoring system. The system includes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools and hole cleaning equipment. is designed for bonding threaded rod and reinforcing bar hardware into drilled holes in concrete base and solid masonry materials.
Pure Epoxy 3:1 resin is a high performance, two components pure epoxy resin system. Applied in one
single action this resin will produce a high performance, strong fixing with exceptionally high chemical resistance.
Solvent-free, epoxy resin based, two part high performance anchoring adhesive.
A two component chemical anchoring injection system.
A formulation derived from a special resin blend, with high bond strength,
developed principally to anchor threaded rods into concrete. Used widely for
installations in extremely cold temperature situations.
Xinchor FixingChor injection system is a composite mortar based on epoxy resin. The mortar consists of 2 components, which are mixed in the static mixer to form a perfectly mixed mortar mass and can therefore harden.

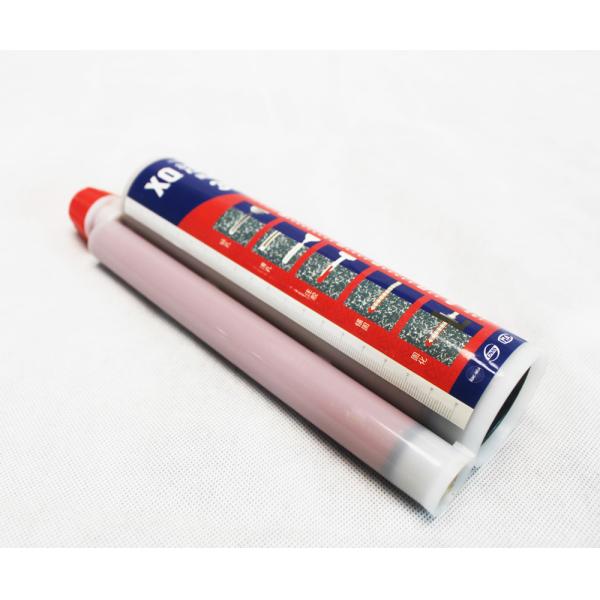

Xinchor FixingChor Series are available in various packaging solutions. From small 360ml to 650ml cartridge for processing large quantities of mortar. All cartridges are side-by-side cartridges and must therefore be pressed out with a dispenser.
Xinchor FixingChor composite mortar is ideal for subsequent reinforcement connections (rebar) as well as highly stressed fastenings in concrete - regardless of whether cracked or non-cracked. In particular, large drilling diameters and / or large anchoring depths can be implemented very well due to the long processing time. The extensive evaluation in accordance with the latest standards makes it possible to solve almost all fastening-related problems.
Application Range
For structural work:
Rebar / steel reinforcement anchoring in new and refurbishment works.
Threaded rods
Bolts and special fastening systems
Mechanical and electrical services installation
Anchoring of supports for ducting and equipment.
Metal Work, carpentry
Fixing of handrails, balustrades and supports
Fixing of railings
Fixing of window and door frames
Fixing of the following substrates:
Concrete
Hard natural and reconstituted stone
Solid rock and masonry
Steel
Wood
Technical Data
Anchoring Adhesive used with thread rod
| Thread Rod Dia | C30 Concrete | M10 | M12 | M16 | M20 | M24 |
| Drilling Dia.(mm) | | 12 | 14 | 18 | 24 | 28 |
| Depth (mm) | | 90 | 110 | 145 | 180 | 220 |
| Damage Pulling force KN | Grade 5.8 Steel | 29 | 42.2 | 78.5 | 122.5 | 254.5 |
| Grade 8.8 Steel / A4 SS | 36.8 | 52.9 | 94.1 | 147.0 | 211.7 |
| Damage Cutting force KN | Grade 5.8 Steel | 17.4 | 25.3 | 47.1 | 73.5 | 105.9 |
| Grade 8.8 Steel | `27.8 | 40.5 | 75.3 | 117.6 | 169.4 |
| A4 SS | 24.4 | 35.4 | 65.9 | 102.9 | 105.9 |
| Designed Pulling force KN | | 12.0 | 17.02 | 30.6 | 52.4 | 75.2 |
| Designed Cutting Force KN | Grade 5.8 Steel | 12.2 | 17.6 | 32.9 | 51.5 | 74.1 |
| Grade 8.8 Steel | 18.6 | 27.0 | 50.2 | 78.4 | 113.0 |
| A4 SS | 13.0 | 19.0 | 35.3 | 55.2 | 56.9 |
| Holes for each | | 54 | 25 | 8 | 5 | 3 |
Anchoring Loading Capacity of rebar to C30 concrete (designed value KN)
| Rebar d(mm) | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 32 |
| Hole D(mm) | 14 | 16 | 18 | 22 | 25 | 28 | 30 | 32 | 36 | 38 | 40 |
| Bar planting depth (mm) | 100 | 19.8 | | | | | | | | | | |
| 120 | 23.8 | 27.6 | | | | | | | | | |
| 140 | 27.7 | 32.2 | 36.3 | | | | | | | | |
| 160 | 31.7 | 36.8 | 41.5 | 45.8 | | | | | | | |
| 180 | | 41.4 | 46.6 | 51.6 | 55 | | | | | | |
| 200 | | 46.0 | 51.8 | 57.3 | 61.1 | 62.8 | | | | | |
| 220 | | | 57.0 | 63.1 | 67.2 | 69.1 | 71.5 | | | | |
| 240 | | | 62.2 | 68.9 | 73.3 | 75.4 | 78 | 79.2 | | | |
| 260 | | | | 74.6 | 79.3 | 81.7 | 84.5 | 85.8 | 96.1 | | |
| 280 | | | | 80.4 | 85.4 | 88.0 | 91.0 | 92.4 | 102.9 | 107.4 | |
| 300 | | | | | 91.5 | 94.2 | 97.5 | 99 | 109.8 | 114.6 | 115.8 |
| 320 | | | | | 97.6 | 100.5 | 103.9 | 105.6 | 116.6 | 121.8 | 123 |
| 340 | | | | | 103.7 | 106.8 | 110.4 | 112.2 | 123.5 | 128.9 | 130 |
| 360 | | | | | | 113.0 | 117.0 | 118.8 | 130.4 | 136.1 | 137.5 |
| 380 | | | | | | 119.3 | 123.5 | 125.3 | 137.2 | 143.3 | 144.8 |
| 400 | | | | | | 125.6 | 130 | 131.9 | 144.1 | 150.4 | 152 |
| 420 | | | | | | | 136.5 | 138.5 | 150.9 | 157.6 | 159.2 |
| 440 | | | | | | | 143 | 145.1 | 157.8 | 164.7 | 166.5 |
| 480 | | | | | | | 149.5 | 151.7 | 164.7 | 171.9 | 173.7 |
| 500 | | | | | | | 156 | 1583 | 171.5 | 179.1 | 181 |
| 550 | | | | | | | | 164.9 | 188.7 | 197 | 199.1 |
| 600 | | | | | | | | 181.4 | 205.8 | 214.8 | 217.1 |
| 650 | | | | | | | | 197.9 | 223 | 232.7 | 235.2 |
| 700 | | | | | | | | | 240.1 | 250.6 | 253.2 |
| 750 | | | | | | | | | 257.3 | 268.5 | 271.5 |
| 800 | | | | | | | | | | 286.4 | 289.6 |
| 850 | | | | | | | | | | | 307.7 |
| anchoring length (mm) | 147 | 149 | 178 | 210 | 250 | 300 | 351 | 446 | 538 | 592 | 666 |
| steel yield (mm) | 23.6 | 33.9 | 46.2 | 60.3 | 76.3 | 94.2 | 114 | 147.2 | 184.6 | 212.1 | 241.2 |
Our main product series:
-- Chemical Anchor series
Pure Epoxy Adhesive 360ml (5:1) 390ml(3:1) 585ml (3:1)
-- Steel bonding reinforcement system
XQ-JGN structural epoxy adhesive
XQ-GZ Grouting epoxy adhesive
XQ-FB edge sealing adhesive
-- Concrete repair system
XQ-GF crack grouting adhesive
XQ-FF crack sealing adhesive
-- Carbon fiber reinforcement system,
XQ-XW carbon fiber epoxy adhesive
XQ-XB concrete surface leveling epoxy adhesive
XQ-CFC carbon fiber fabric 12K unidirectional 200gsm-600gsm
